Single Wall corrugated pipe machine

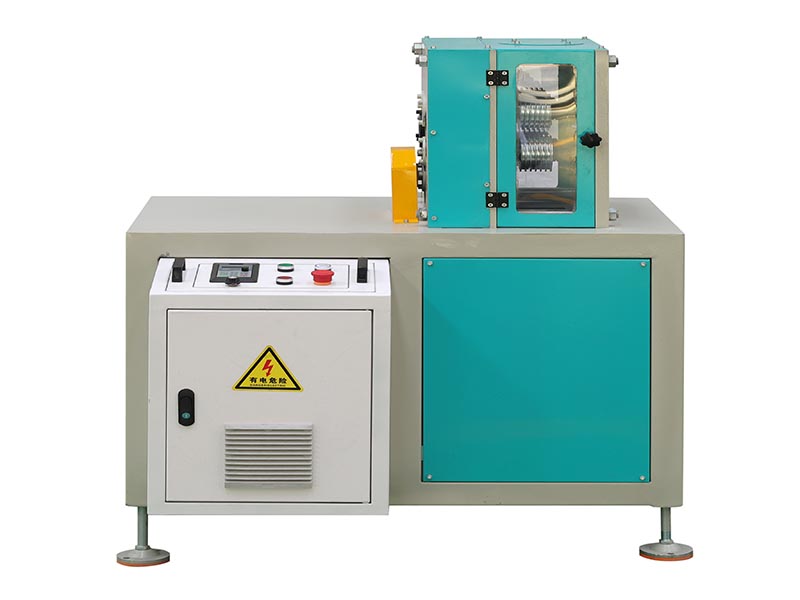

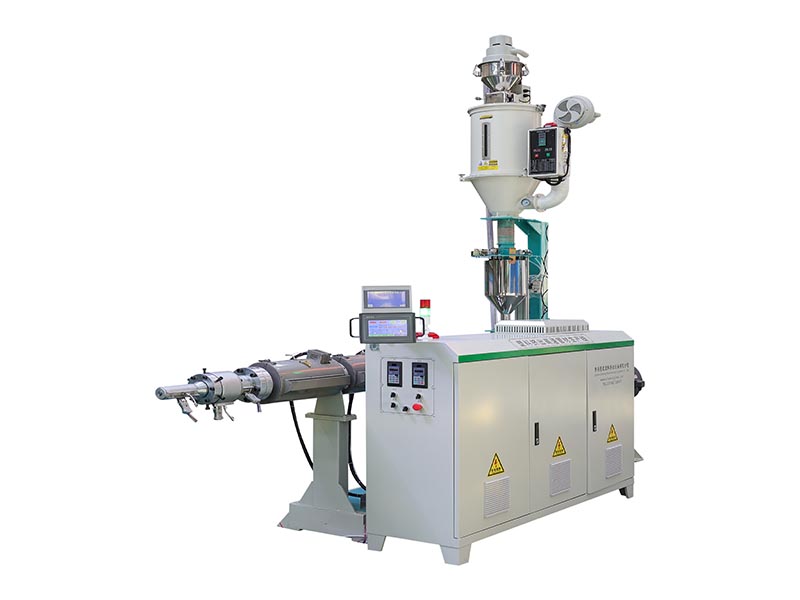

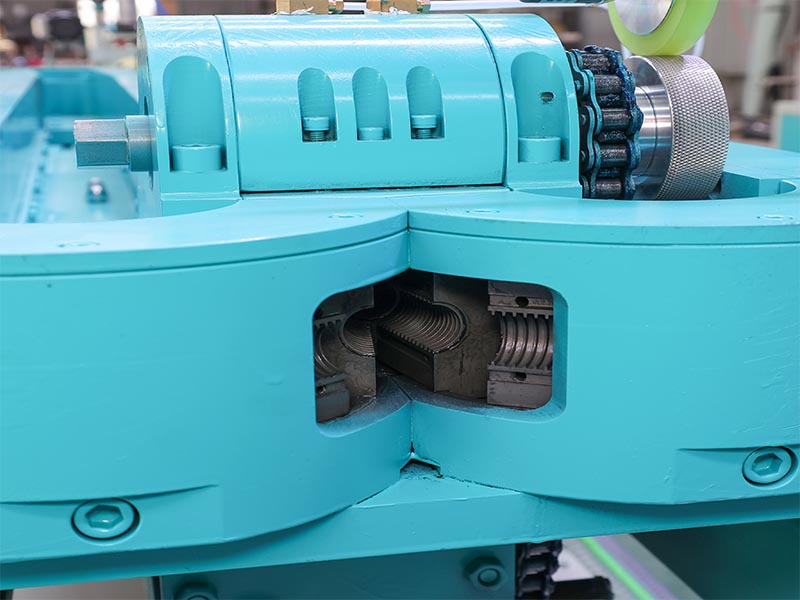

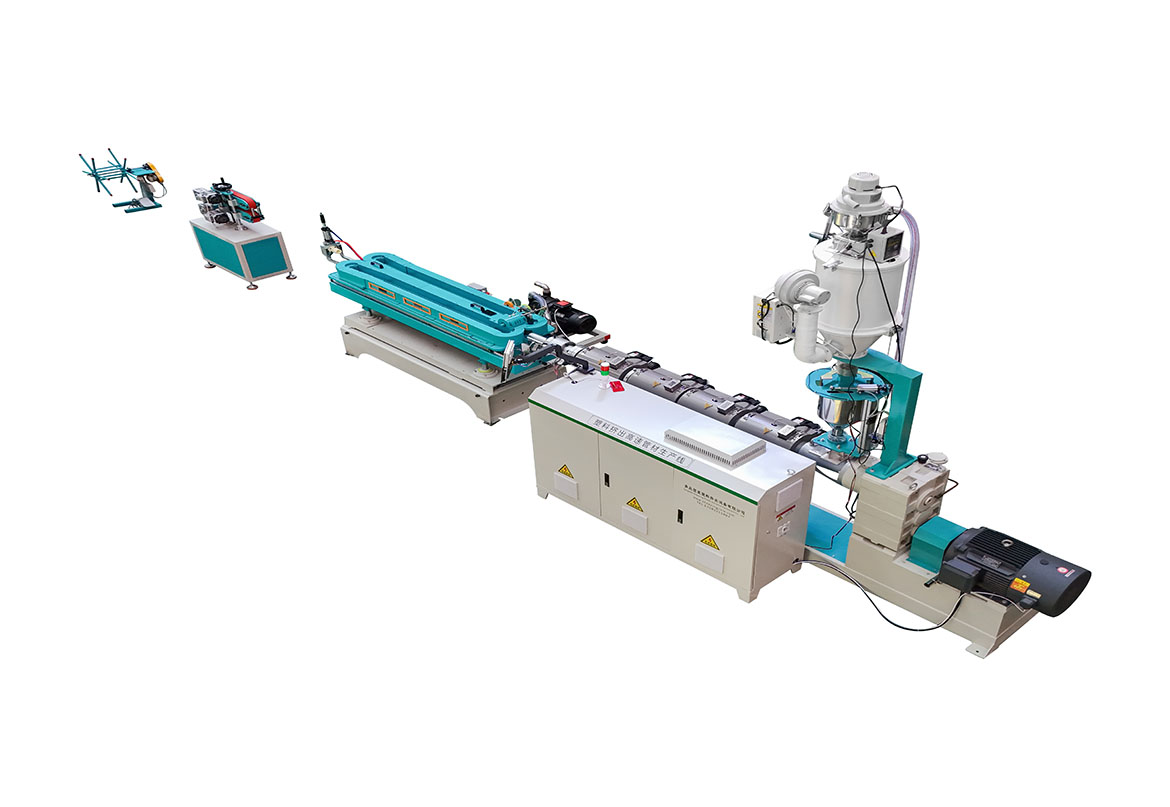

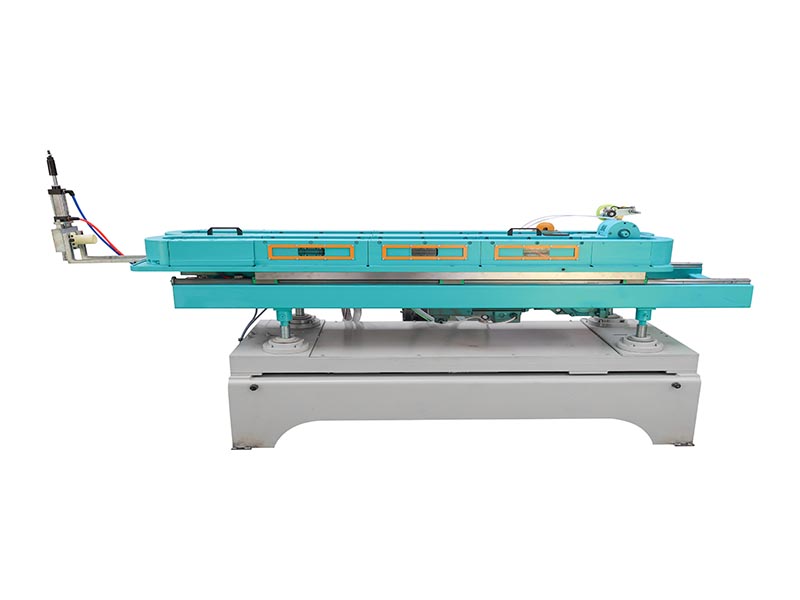

Our Single Wall corrugated pipe machine consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment,Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipes in high speed.

We developed the mahcine on the basis of traditional structure, and give new designing on the forming table, we adopt SJ45, SJ65,SJ90,SJ120 to produce different range pipe diameter. This machine can be used to produce single-wall or one wall corrugated pipe of PE, PP, PVC, EVA as well as PA corrugated pipes.

  • Product Introduction

    Applications:
    Finished pipes produced by our line have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine, etc. The following are some specific application for your reference:
    1) This machine can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA.
    2) Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc...
    3) Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.

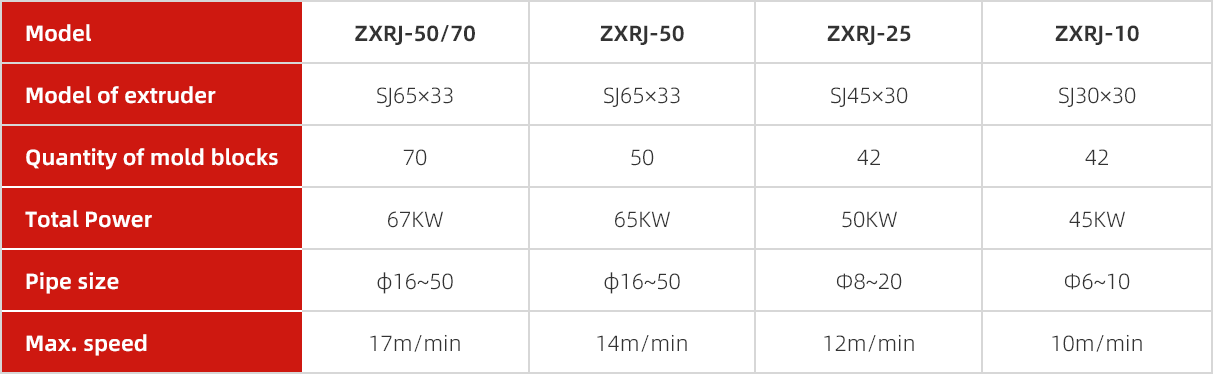

  • Technical parameters
