Products

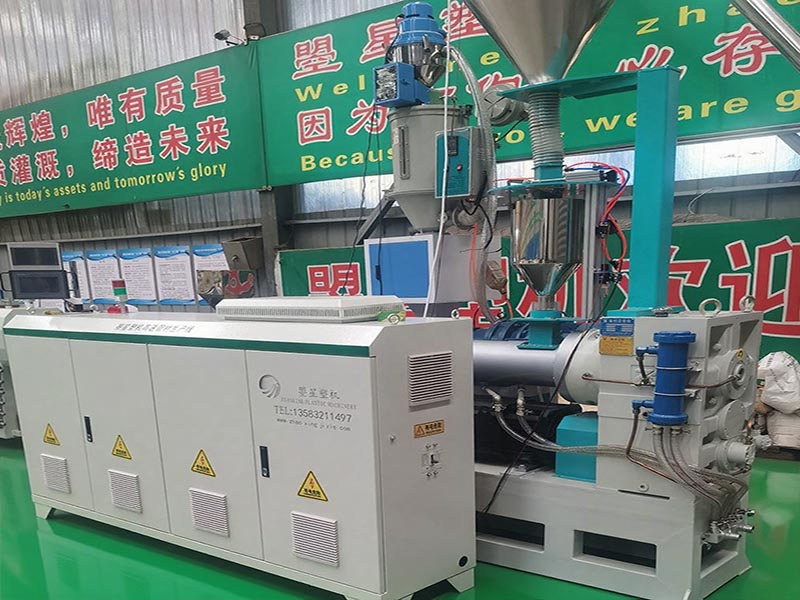

1.Dedicated PPR Extruder
• Equipped with high-speed hardened-gear-surface reducer and low-noise energy-saving fan cooling system.
• Features auto-temperature control and automatic gravimetric feeding.
• Specialized screw plasticization zone enhances compression and filling efficiency.
• Low-temperature high-plasticity processing significantly boosts production output.

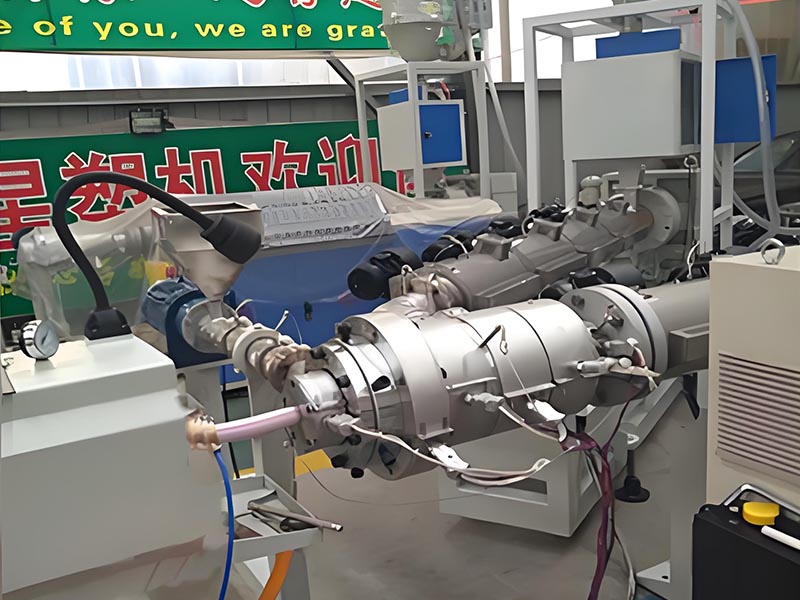

2. Proprietary High-Pressure Die
• Forged die steel construction with tempered/electroplated treatment.
• Unique core design ensures low-temperature plasticization and maintains precise thermal control for superior PPR pipe surface quality.
• Our multi-layer co-extrusion dies – acclaimed for uniform melt pressure/flow distribution and effortless adjustability – are trusted industry-wide.

3. Vacuum Calibrating and Cooling Tank (Two-Stage System for Large Diameters)
• High-pressure water circulation with advanced auto-level control and temperature management.
• Enables 3D adjustment (vertical/lateral/front-rear positioning).
• Dual-water-circuit sizing system with optimized piping reduces cooling length by 30%*, ensuring high-speed stable production.

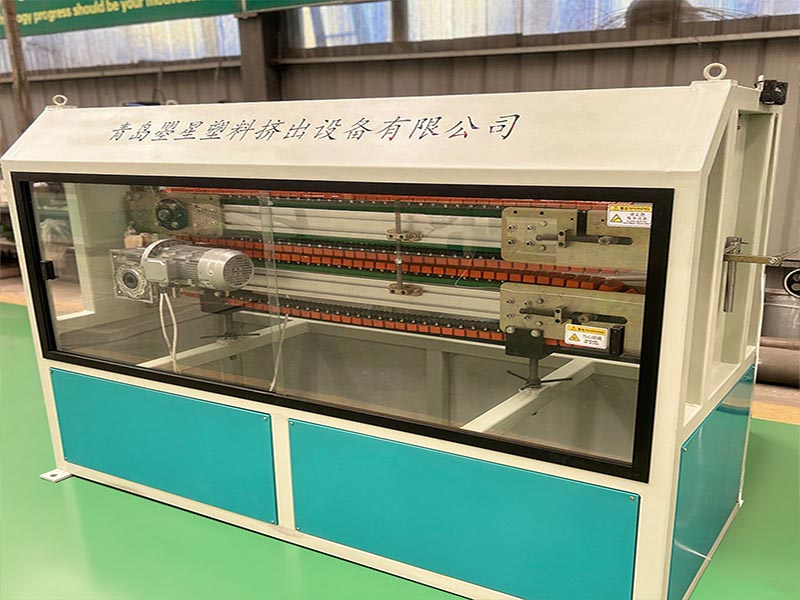

4. Synchronized Haul-off Unit
• Integrated transmission design eliminates independent-drive synchronization issues and vibration.
• Electrically interlocked clamping mechanism allows precise pressure adjustment and directional positioning.

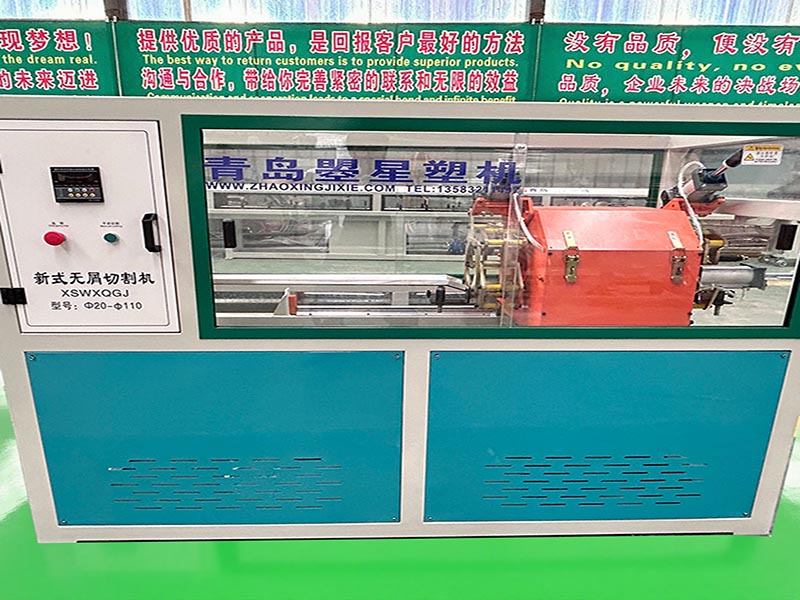

5. Chip-Free Cutting Unit
• Full hydraulic/pneumatic actuation guarantees seamless motion coordination.
• Blade position/depth adjustable via PLC-controlled system (intuitive operation).
